Quick. Easy. Accurate.
The Installer’s Choice… Designed and manufactured by experienced mount experts, Rapid Video Mounts come fully assembled with all the necessary hardware included. They are quick mounting, load tested for more than 4 times the load-rated capacity, and guaranteed with 5 year warranty.
Small Full Motion
RVM-22FM35
The Rapid Video Mounts Small Full Motion Mount is a low profile wall mount for panels up to 37″ and up to 35 lbs. The Small Full Motion Mount has been designed for quick, easy, and accurate installation (all necessary hardware included).
This mount allows you to have your flat panel TV either flat against the wall (1.61″ low profile), tilted down for glare control or optimum viewing angle, or pulled out from the wall (12.8″ extension) and angled towards a separate viewing area. With the post installation leveling feature your TV will be mounted right the first time.
• Capacity: 35lbs, panels up to 37″
• Tilts: -3° to 10°
• Extends: 12.8″
• VESA Pattern: 200 x 200
• Low Profile: 1.61″
Medium Full Motion
RVM-44FM60
The Rapid Video Mounts Medium Full Motion Mount is a low profile wall mount for panels up to 55″ and up to 60 lbs. The Medium Full Motion Mount has been designed for quick, easy, and accurate installation (all necessary hardware included).
This mount allows you to have your flat panel TV either flat against the wall (2.65″ low profile), tilted down for glare control or optimum viewing angle, or pulled out from the wall (16.2″ extension) and angled towards a separate viewing area. With cable management on the arm supports and post installation leveling feature your TV will be mounted right the first time.
• Capacity: 60lbs, panels 32″ – 55″
• Tilts: -3° to 10°
• Extends: 16.2″
• VESA Pattern: 400 x 400
• Low Profile: 2.65″
Medium Full Motion
RVM-44FM70D
The Rapid Video Mounts Medium Full Motion Double-Stud Mount is a low profile wall mount for panels up to 55″ and up to 70 lbs. It is ideal for customers looking for the added security of 2-stud mounting. The Medium Full Motion Double-Stud Mount has been designed for quick, easy, and accurate installation (all necessary hardware included).
This mount allows you to have your flat panel TV either flat against the wall (2.60″ low profile), tilted down for glare control or optimum viewing angle, or pulled out from the wall (21.0″ extension) and angled towards a separate viewing area. With cable management, 3-way tensioning handles, and post-installation leveling, your TV will be mounted right the first time.
• Capacity: 70lbs, panels 32″ – 55″
• Tilts: -3° to 10°
• Extends: 21.0″
• VESA Pattern: 400 x 400
• Low Profile: 2.60″

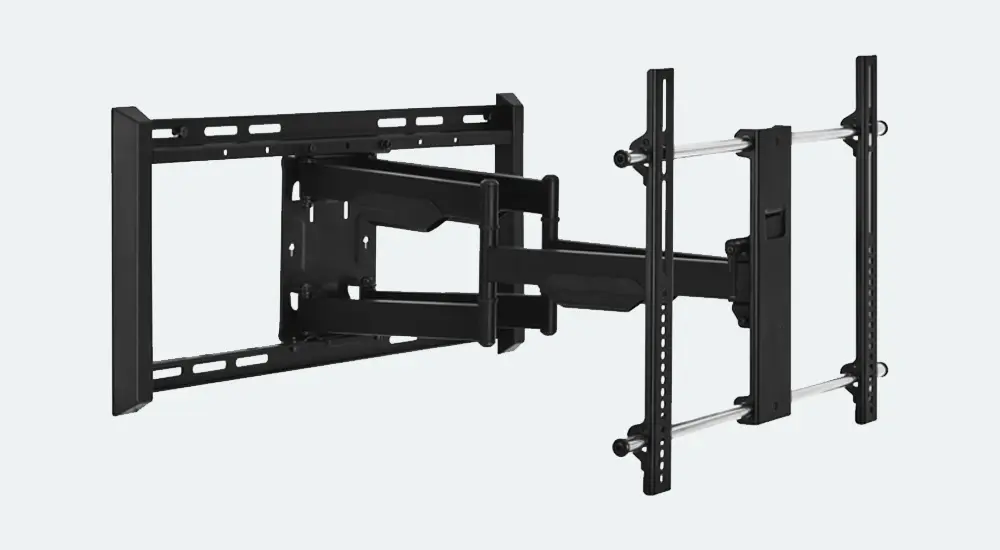

Large Full Motion
RVM-64FM125
The Rapid Video Mounts Large Full Motion Mount is a low profile wall mount for panels up to 65″ and up to 125 lbs. The Large Full Motion Mount has been designed for quick, easy, and accurate installation (all necessary hardware included).
This mount allows you to have your flat panel TV either flat against the wall (2.65″ low profile), tilted down for glare control or optimum viewing angle, or pulled out from the wall (21″ extension) and angled towards a separate viewing area. With cable management on both arm supports and post installation leveling feature your TV will be mounted right the first time.
• Capacity: 125lbs, panels 42″ – 65″
• Tilts: -3° to 10°
• Extends: 21.0″
• VESA Pattern: 600 x 400
• Low Profile: 2.00″
X-Large Full Motion
RVM-75FM150
The Rapid Video Mounts Large Extra Large Full Motion Mount is a low profile wall mount for panels up to 90″, up to 150 lbs. in weight, and for 16″ or 24″ stud walls.
The Extra Large Full Motion Mount has been designed for quick, easy, and accurate installation (all necessary hardware included). This mount allows you to have your flat panel TV either flat against the wall (3.60” low profile), tilted down for glare control or optimum viewing angle, or pulled out from the wall (31.0” extension) and angled towards a separate viewing area. Due to it’s unique single-arm design, this mount allows even large flat panels to be corner mounted.
Also, the ‘centering feature’ on the wall plate allows a full 8” of lateral shift. With cable management on both the front and rear arm supports and with post installation leveling feature your TV will be mounted right the first time.
• Capacity: 150lbs, panels 55″ – 90″
• Tilts: -3° to 10°
• Extends: 31.0″
• VESA Pattern: 700 x 500
• Low Profile: 3.60 inch tilt-down for glare control or optimum
viewing angle, or pulled out from the wall (31.0 inch- extension)
and angled towards a separate viewing area.
Why mount a flat panel TV in the first place?
A mounted TV provides a better viewing experience and eliminates the need for furniture, creating more floor space. A mounted TV is also much safer. The Consumer Product Safety Commission (CPSC) estimates that TV tip-overs account for 18,900 emergency room visits each year, 66% of which are children nine or younger (see report). A mounted TV eliminates this danger.
Which mount for which TV?
There are 4 things to consider:
- Preferences: Consider the room into which you are mounting your TV. If you are mounting the TV higher on a wall or near the side of the room, you’ll want to consider tilt or full motion mounts.
- Weight: Your TV should weigh less than the mount capacity.
- Screen Size: Your TV’s screen size should be within the recommended screen size for the mount.
- Mounting Hole Pattern: The mounting hole pattern on the back of your TV needs to match the mounting hole pattern capabilities.
Do you have adapters for oddly spaced studs or non-match VESA holes?
Yes, we have adapters for most situations. Simply email info@rapidvideomounts.com and we’ll ship them out.
